B+Tree

Overview

In this project you will implement a B+Tree index in your database system. A B+Tree is a balanced search tree in which the internal pages direct the search and leaf pages contain the actual data entries. The index provides fast data retrieval without needing to search every row in a database table, enabling rapid random lookups and efficient scans of ordered records. Your implementation will support thread-safe search, insertion, deletion (including splitting and merging nodes), and an iterator to support in-order leaf scans. You need to complete the following tasks:

• Task #1 - B+Tree Pages
• Task #2 - B+Tree Operations (Insertion, Deletion, and Point Search)
• Task #3 - Index Iterator
• Task #4 - Concurrency Control

Your work in Project #2 depends on your implementation of the buffer pool and page guards from Project #1. If your Project #1 solution is incorrect, you MUST fix it to successfully complete this project. This project must be completed individually (i.e., no groups).

• Release Date: Sep 29, 2025
• Due Date: Nov 3, 2025 @ 11:59pm

This project is more difficult than previous projects! We strongly recommend that you START EARLY or you will have problems.

Project Specification

We have provided stub classes that define the APIs that you must implement. You should not modify the signatures of these pre-defined functions; if you do, our test code will not work and you will receive little or no credit for the project. Similarly, you should not remove existing member variables from the code we provide. You may add functions and member variables to these classes to implement your solution. Unlike past projects, it is hard to complete this assignment without adding both public and private member functions to a variety of the classes you will modify.

First, you will implement the various node data structures in the following files

• src/include/storage/page/b_plus_tree_page.h
• src/storage/page/b_plus_tree_page.cpp
• src/include/storage/page/b_plus_tree_internal_page.h
• src/storage/page/b_plus_tree_internal_page.cpp
• src/include/storage/page/b_plus_tree_leaf_page.h
• src/storage/page/b_plus_tree_leaf_page.cpp

See Task #1 - B+Tree Pages for details.

Next, you will implement the high-level data structure functionality for the BPlusTree class (e.g., Insert, Delete, etc.) in

• src/include/storage/index/b_plus_tree.h
• src/storage/index/b_plus_tree.cpp

See Task #2 - B+Tree Operations (Insertion, Deletion, and Point Search) for details

Finally, you will implement an iterator over the leaf nodes by modifying

• src/include/storage/index/index_iterator.h
• src/storage/index/index_iterator.cpp

See Task #3 - Index Iterator for details.

Proper concurrency control (see Task #4 - Concurrency Control) must be implemented for features described in tasks 1 and 2. The iterator in task 3 does not need to be thread-safe.

Before you start, run git pull public master to pull the latest code from the public BusTub repository.

High-level Design

Figuring out how the pieces of tasks 1-4 fit together is part of this assignment.
With that in mind, here is a non-exhaustive description of the high-level design to get you started.

The main functionality / public interface for your B+Tree will be implemented as part of the BPlusTree class. This contains the high-level functions such as Insert and Delete that comprise task 2. As described in lecture, we should assume that the B+Tree can be larger than memory. Hence, we need to store at least some of the data structure on disk and then pull these nodes into memory on-demand in order to traverse and modify the tree.

Sound familiar? To solve this problem, BPlusTree takes a BufferPoolManager * in its constructor. You will use this buffer pool to read, write, create, and delete nodes in your tree. Here, each logical node will correspond to a BPlusTreePage instance. The location of each BPlusTreePage will be managed by the buffer pool manager. For this reason, and to maintain thread-safety, you should access the nodes of your B+Tree using our old friends ReadPageGuard and WritePageGuard. This is why a working buffer pool implementation is essential for this project. To reiterate, if you are directly constructing BPlusTreePage instances on the stack or on the heap using new and delete, you are doing it wrong.

One last point of possible confusion. You may notice the files:

• src/storage/index/b_plus_tree_index.h
• src/storage/index/b_plus_tree_index.cpp

These are not files you are meant to modify. These implement the class BPlusTreeIndex, a wrapper that takes the BPlusTree you will implement and connects it up to be used as an index by the rest of the DBMS. You should not change these files.

Task #1 - B+Tree Pages

You must implement the following three Page classes to store the data of your B+Tree.

• B+Tree Page
• B+Tree Internal Page
• B+Tree Leaf Page

Task #2 - B+Tree Operations (Insertion, Deletion, and Point Search)

In this task, your B+Tree Index needs to support insertion (Insert()), deletion (Delete()), and search (GetValue()) for single values. The index should support only unique keys; if you try to reinsert an existing key into the index, insertion should not be performed and false will be returned.

B+Tree pages should be split (or keys should be redistributed) if an insertion would violate the B+Tree’s invariants. If an insertion changes the page ID of the root, you must update the root_page_id in the B+Tree index’s header page. You can do this by accessing the header_page_id_ page, which is given to you in the constructor. Then, by using reinterpret cast , you can interpret this page as a BPlusTreeHeaderPage (from src/include/storage/page/b_plus_tree_header_page.h) and update the root page ID from there. You also must implement GetRootPageId.

Similarly, your B+Tree Index must support including merging or redistributing keys between pages if necessary to maintain the B+Tree invariants when deleting a key. As with insertions, you must correctly update the B+Tree’s root page ID if the root changes.

We recommend that you use the page guard classes from Project #1 to avoid synchronization problems. You should use ReadPage or WritePage accordingly.

You may optionally use the Context class (defined in ) to track the pages that you’ve read or written (via the read_set_ and write_set_ fields) or to store other metadata that you need to pass into other functions recursively.

If you are using the Context class, here are some tips:

• You might only need to use write_set_ when inserting or deleting. It is possible that you do not use read_set_, depending on your implementation.
• You might want to store the root page id in the context and acquire write guard of header page when modifying the B+Tree.
• To find a parent of the current node, look at the back of write_set_. It should contain all nodes along the access path.
• You may use BUSTUB_ASSERT to help you find inconsistent data in your implementation. For example, if you want to split a node (except root), you should ensure that there is still at least one node in the write_set_. If you need to split root, you should check if header_page_ is std::nullopt.
• To unlock the header page, simply set header_page_ to std::nullopt. To unlock other pages, pop from the write_set_ and drop.

The B+Tree is parameterized on arbitrary key, value, and key comparator types. We’ve defined a macro, INDEX_TEMPLATE_ARGUMENTS, that generates the template parameter declaration for you:

template <typename KeyType,
          typename ValueType,
          typename KeyComparator>

The type parameters are:

• KeyType: The type of each key in the index. In practice this will be a GenericKey. The actual size of a GenericKey varies, and is specified with its own template argument that depends on the type of indexed attribute.
• ValueType: The type of each value in the index. In practice, this will be a 64-bit RID.
• KeyComparator: A class used to compare whether two KeyType instances are less than, greater than, or equal to each other. These will be included in the KeyType implementation files.

Task #3 - Index Iterator

After you have implemented and thoroughly tested your B+Tree in Tasks #1 and #2, you must add a C++ iterator that efficiently supports an in-order scan of the data in the leaf pages. The basic idea is to store sibling pointers so that you can efficiently traverse the leaf pages, and then implement an iterator that iterates through every key-value pair, in order, in every leaf page.

Your iterator must be a C++17-style Iterator, including at least the following methods:

• isEnd(): Return whether this iterator is pointing at the last key/value pair.

• operator++(): Move to the next key/value pair.

• operator*(): Return the key/value pair this iterator is currently pointing at.

• operator==(): Return whether two iterators are equal.

• operator!=(): Return whether two iterators are not equal.

Your BPlusTree also must correctly implement begin() and end() methods, to support C++ for-each loop functionality on the index.

You must implement your index iterator by modifying only its header file src/include/storage/index/index_iterator.h and corresponding source file src/index/storage/index_iterator.cpp.

Task #4 - Concurrency Control

In the last task, you will modify your B+Tree implementation so that it safely supports concurrent operations. You should use the latch coupling/crabbing technique described in class and in the textbook. The thread traversing the index should acquire latches on B+Tree pages as necessary to ensure safe concurrent operations, and should release latches on parent pages as soon as possible when it is safe to do so.

Note: You should never acquire the same read lock twice in a single thread. It might lead to deadlock.

Leaderboard Task (Optional)

The leaderboard task is a measurement of how fast your B+Tree Index compared to other students’ implementations. The B+Tree benchmark runner `tools/btree_bench/btree_bench.cpp’)}}) uses multiple threads to concurrently read and update the index using different access patterns.

Optimizing for the leaderboard is optional (i.e., you can get a perfect score in the project after finishing all previous tasks). However, your solution must finish the leaderboard test with a correct result and without deadlock and segfault.

Recommended Optimizations:

• For deletion, place tombstones in the leaf instead of doing actual deletions. Then clean up tombstones in the background or after some thresholds.
• Optimistically acquire read locks for all modification operations because trees will split and coalesce less often. Similar techniques are described in the Bε-tree paper.

Instructions

See the Project #0 instructions on how to create your private repository and setup your development environment.

Development Roadmap

There are several ways in which you could go about building a B+Tree Index. This road map only serves as a rough conceptual guideline, which is based on the algorithm outlined in the textbook. You could end up with a semantically correct B+Tree that passes all our tests even without strictly following the roadmap. The choice is entirely yours.

- Simple Inserts: Given a key-value pair KV and a non-full node N, insert KV into N. Self check: What are the different types of nodes and can key-values be inserted in all of them? - Simple Search: Given a key K, define a search mechanism on the tree to determine the presence of the key. Self check: Can keys exist in multiple nodes and are all these keys the same? - Simple Splits: Given a key K, and a target leaf node L that is full, insert the key into the tree, while keeping the tree consistent. Self check: When do you choose to split a node and how to define a split? - Multiple Splits: Define inserts for a key K on a leaf node L that is full, whose parent node M is also full. Self check: What happens when the parent of M is also full? - Simple Deletes: Given a key K and a target leaf node L that is at-least half full, delete K from L. Self check: Is the leaf node L the only node that contains the key K? - Simple Coalesces: Define deletion for a key K on a leaf node L that is less than half-full after the delete operation. Self check: Is it mandatory to coalesce when L is less than half-full and how do you choose which node to coalesce with? - Not-So-Simple Coalesces: Define deletion for a key K on a node L that contains no suitable node to coalesce with. Self check: Does coalescing behavior vary depending on the type of nodes? This should take you through to Task 1 and 2. - Index Iterators: The section on Task #3 describes the implementation of an iterator for the B+Tree. - Concurrent Indexes: The section on Task #4 describes the implementation of the latch crabbing technique to support concurrency in your design.

Requirements and Hints

• You are not allowed to use a global latch to protect your data structure; your implementation must support a reasonable level of concurrency. In other words, you may not latch the whole index and only unlatch when operations are done.

• We recommend that you use the page guard classes ReadPageGuard and WritePageGuard to implement thread safety for your B+Tree. You can receive full credit on this project if you use these constructs correctly.

• You may add functions to your implementation as long as you keep all our original public interfaces intact for testing purposes.

• Do not use malloc or new to allocate large blocks of memory for your tree. If you need to need to create a new node for your tree or need a buffer for some operation, you should use the buffer pool manager.

• Use binary search to find the place to insert a value when iterating an internal or leaf node. Otherwise, your implementation will probably timeout on Gradescope.

• We recommend (but do not require) that you to follow this rule when implementing split: split a leaf node when the number of values reaches max_size after insertion, and split an internal node when number of values reaches max_size before insertion. This will ensure that an insertion to a leaf node will never cause a page data overflow when you do something like InsertIntoLeaf and then redistribute; it will also prevent an internal node with only one child. However, you indeed can do something like lazily splitting leaf node / handling the case for internal node of only one children. It is up to you; our test cases do not test for these conditions.

Common Pitfalls

• We do not test your iterator for thread-safe leaf scans. A correct implementation, however, would require the Leaf Page to throw a std::exception when it cannot acquire a latch on its sibling to avoid potential dead-locks.

• If you implement a concurrent B+Tree index correctly, every thread will always acquire latches from the header page to the bottom. When you release latches, make sure you release them in the same order (from the header page to the bottom).

• When implementing the page classes (Task 1), make sure you only add class fields of trivially-constructed types (e.g. int). Do not add vectors and do not modify key_array_ and value_array_.

Testing

We are making all the grading tests available to you to run locally. Your implementation must pass the following tests:

• test/storage/b_plus_tree_insert_test.cpp
• test/storage/b_plus_tree_sequential_scale_test.cpp
• test/storage/b_plus_tree_delete_test.cpp
• test/storage/b_plus_tree_concurrent_test.cpp

We strongly encourage you to write additional test cases for yourself to better understand your implementation.

You can test the individual components of this assigment using our testing framework. We use GTest for unit test cases.

You can compile and run each test individually from the command line:

$ mkdir build
$ cd build
$ make b_plus_tree_insert_test -j$(nproc)
$ ./test/b_plus_tree_insert_test

You can also run make check-tests to run all the test cases. Note that some tests are disabled as you have not implemented future projects. You can disable tests in GTest by adding a DISABLED_ prefix to the test name.

Tree Visualization

BusTub includes a built-in tool tools/b_plus_tree_printer/b_plus_tree_printer.cpp for generating a graphical representation of your B+Tree. This tool will help you check your solution for correct behavior to ensure it is performing the splits and merges correctly.

To generate a dot file after constructing a tree:

$ # To build the tool
$ mkdir build
$ cd build
$ make b_plus_tree_printer -j
$ ./bin/b_plus_tree_printer
>> ... USAGE ...
>> 5 5 // set leaf node and internal node max size to be 5
>> f input.txt // Insert into the tree with some inserts
>> g my-tree.dot // output the tree to dot format
>> q // Quit the test (Or use another terminal)

You should now have a my-tree.dot file with the DOT file format in the same directory as your test binary, which you can then visualize with a command line visualizer or an online visualizer:

• Dump the content to http://dreampuf.github.io/GraphvizOnline/.
• Or download a command line tool for your platform. Then create a PNG file of your tree using this command: dot -Tpng -O my-tree.dot

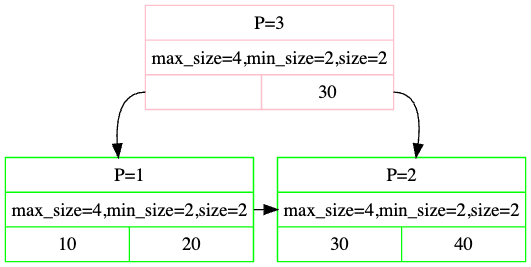

Consider the following example generated with GraphvizOnline:

• Rectangles in Pink represent internal nodes, those in Green represent leaf nodes.
• The first row P=3 tells you the page id of the tree page.
• The second row prints out the properties.
• The third row prints out keys, and pointers from internal node to the leaf node is constructed from internal node’s value.
• Note that the first box of the internal node is empty. This is not a bug.

Contention Benchmark

To ensure you are implementing lock crabbing correctly, we will use a contention benchmark to collect some heuristics from your implementation, and then manually review your code based on the heuristics. The contention ratio is the slowdown when the B+ tree is used in a multi-thread environment, compared to a single-thread environment. The contention ratio generally should be in the range [2.5, 3.5] on Gradescope. A contention ratio less than 2.5 probably means that your lock crabbing is incorrect (e.g, use some global locks or hold locks for an unnecessarily long time).
A contention ratio greater than 3.5 probably means that the lock contention is too high in your implementation and you are recommended to investigating what is happening.

Your submission must pass contention benchmark without segfault and deadlock. Otherwise you will get zero score for all of the concurrent test cases (which will be deducted manually).

Formatting

Your code must follow the Google C++ Style Guide. We use Clang to automatically check the quality of your source code. Your project grade will be zero if your submission fails any of these checks.

Execute the following commands to check your syntax. The format target will automatically correct your code. The check-lint and check-clang-tidy-p2 targets will print errors and instruct you how to fix it to conform to our style guide.

$ make format
$ make check-lint
$ make check-clang-tidy-p2

Memory Leaks

For this project, we use LLVM Address Sanitizer (ASAN) and Leak Sanitizer (LSAN) to check for memory errors. To enable ASAN and LSAN, configure CMake in debug mode and run tests as you normally would. If there is a memory error, you will see a memory error report. Note that MacOS only supports address sanitizer without leak sanitizer.

In some cases, address sanitizer might affect the usability of the debugger. In this case, you might need to disable all sanitizers by configuring the CMake project with:

$ cmake -DCMAKE_BUILD_TYPE=Debug -DBUSTUB_SANITIZER= ..

Development Hints

You can use BUSTUB_ASSERT for assertions in debug mode. Note that the statements within BUSTUB_ASSERT will NOT be executed in release mode. If you have something to assert in all cases, use BUSTUB_ENSURE instead.

We encourage you to use a graphical debugger to debug your project if you are having problems.

If you are having compilation problems, running make clean does not completely reset the compilation process. You will need to delete your build directory and run cmake .. again before you rerun make.

Grading Rubric

Each project submission will be graded based on the following criteria:

• Does the submission successfully execute all of the test cases and produce the correct answer?
• Does the submission execute without any memory leaks?
• Does the submission follow the code formatting and style policies?

Late Policy

Late days may be used on this assignment.

Submission

You will submit your implementation to Gradescope

Running make submit-p2 in your build/ directory will generate a zip archive called project2-submission.zip under your project root directory that you can submit to Gradescope. You can submit your zip file as many times as you want and get immediate feedback.

Notes on Gradescope and Autograder

1. If you are timing out on Gradescope, it is likely because you have a deadlock in your code or your code is too slow and does not run in 60 seconds.
2. The autograder will not work if you are printing too many logs in your submissions.
3. If the autograder did not work properly, make sure that your formatting commands work and that you are submitting the right files.
4. The leaderboard benchmark score will be calculated by stress testing your B+Tree implementation.

Collaboration Policy

• Every student has to work individually on this assignment.
• For details, refer to the course syllabus for the policy on collaboration, outside sources, and AI.
